827-B0-004 Top Assembly R/P Stereo

Page No. 00001 10/23/84 Bill Of Material, CTR100
Part Number Description Item Quantity Designation/Location
340-A0-002 PLAY HEAD STEREO 1 16
340-A0-003 RECORD HEAD STEREO 1 15
42C-A0-001 RIBBON CABLE 2 19
525-A0-006 SHIELD MOTOR 1 37
525-A0-007 SHIELD TRANSFORMER 1 36
525-B0-002 HEAD SHIELD 1 22
525-B0-005 COVER PARTITION 1 23
541-B0-022 SIDE PANEL LEFT 1 3
541-B0-023 SIDE PANEL RIGHT 1 2
582-A0-005 LABEL PART.COVER B 1 38
621-04-632 SCRW PH 6-32 x 1/4 2 27
621-0C-032 SCRW PH 10-32 x 3/4 2 35
645-04-632 SCRW FH 6-32 x 1/4 100>SS 26 25
645-04-832 SCRW FH 8-32 x 1/4 100>SS 4 26
645-06-032 SCRW FH 10-32 x 3/8 100>SS 4 24
6W2-04-440 SET SCREW 4-40 x 1/4 CUPPT 2 33

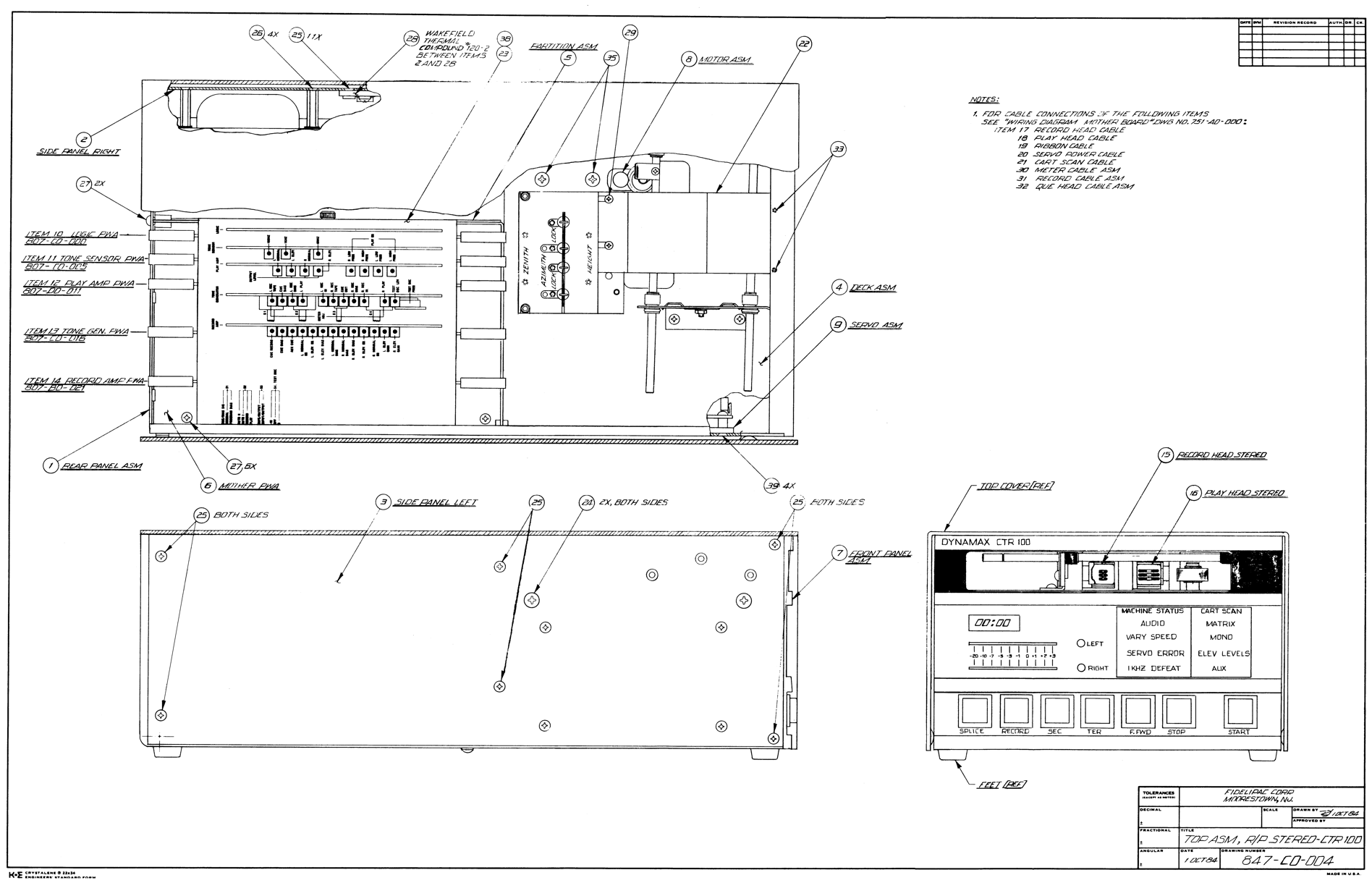

847-C0-004 drawing
